Motor Grader XCMG GR215

Product Category :Motor Grader
Brand : XCMG
Product Origin : CHINA
Delivery Time : 1-90DAYS
Supply Capacity : 1-500UNITS
Manufacturer:Cummins
Engine Model:6CTA8.3
Rated Power/Speed (kW/rpm):160/2200

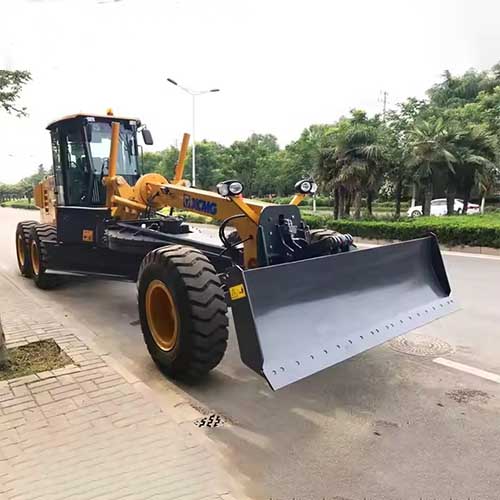

XCMG GR215 Motor Grader 215HP China New Grader Motor

GR215 is mainly used for large ground surface leveling, ditching, slope scraping, bulldozing, scarifying, snow removing and other work in highway, airport and farmland. The grader is necessary engineering machinery for national defense construction, mine construction, urban and rural road construction, water conservancy construction and farmland improvement, etc.

1. Top brand engine, ZF technology gearbox and Meritor drive axle make the dynamic matching of transmission system more reasonable and reliable.

2. Take measures such as vibration elimination, sound absorption and sound insulation to reduce the internal and external noise of the cab.

3. The double-circuit hydraulic brake system is applied to realize more reliable and stable braking.

4. The steering load-sensing system is applied and the main hydraulic units adopt international products to guarantee the system stability and reliability.

5. The blade body adopts adjustable large slide slot and double slideway mechanism and the blade plates are made of wear-resistant high strength materials.

6. The multiple optional parts expand the performance and working scope of machine.

XCMG GR215 Motor Grader 215HP China New Grader Motor Specification

Specification

Specification		GR215
Basic specification	Engine model	6CTAA8.3/6CTA8.3
	Rated power/speed	153kW/2200rpm 160kW/2200rpm
	Dimension(LxWxH)	8970×2625×3420mm
	Operating weight(Standard)	16500kg
Performance specification	Travelling speed ,forward	5,8,11,19,23,38 km/h
	Travelling speed ,reverse	5,11,23 km/h
	Tractive force(f=0.75)	90KN
	Max. gradeability	30%
	Tire inflation pressure	260 kPa
	Working hydraulic pressure	16 MPa
	Transmission pressure	1.3~1.8MPa
Operating specification	Max. steering angle of front wheels	±50°
	Max. lean angle of front wheels	±17°
	Max. oscillation angle of front axle	±15°
	Max. oscillation angle of balance box	15
	Frame articulation angle	±27°
	Min. turning radius using articulation	7.3m
Blade	Maximum lift above ground	450mm
	Maximum depth of cutting	500mm
	Maximum blade position angle	90°
	Blade cutting angle	28°-70°
	Circle reversing rotation	360°
	Moldboard width X height	4270×610mm

1. Why should you buy from us not from other suppliers?

Professional Experience in Construction Machinery;
International Sales Team;
Excellent Logistics Services;
Comprehensive After-sales Service;
Quality Control.

2. How to trust us?

The good faith management is our philosophy,and you are welcome to visit our company at any time.

3.What's your payment term?

We accpet both T/T and L/C
T/T: 30% deposit by T/T,70% balance should be paid before shipment.
L/C: 100% irrevocable Credit of Letter.

4. What kind of logistic service do you supply?

Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.

5. What spare parts can you supply?

All kinds of spare parts of XCMG, ZOOMLION, SANY, SHANTUI,HELI , SINOTRUCK, SHACMAN, LIUGONG,, SDLG, LONKING, XGMA, CUMMINS ENGINE, ZF GEAR BOX, etc.
