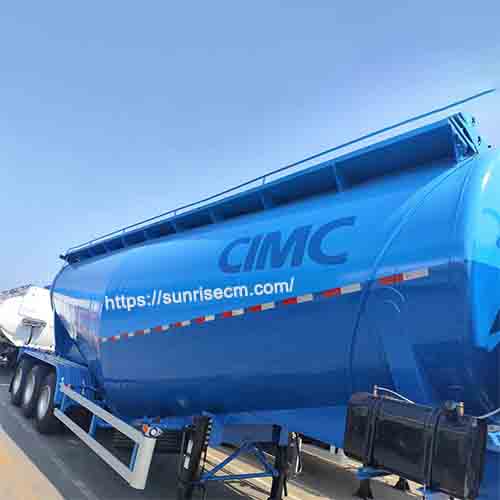

CIMC 45 CBM Powder Tank Trailer
- Product Category : Bulk Cement Tanker Semi Trailer
- Brand : CIMC
- Product origin : CHINA
- Delivery time : 1-90DAYS
- Supply capacity : 1-500UNITS
- Tank Volum: 45CBM
- Barrel Wall Material: T610L
- Axle: FUWA 13T ,3units
CIMC 45 CBM Powder Tank Trailer
CIMC powder tank semi trailer series is designed specifically for construction industry. It has absorbed great design attributes from competitors at home and abroad. Also sophisticated tech and demanding production are applied to make it fittingly structured, functionally reliable, good-looking and convenient to use. It is to be used for the transportation and pressure discharge of pulverized fuel ash, concrete, mineral powder and other grain-shaped stuff with diameter less than 0.1 mm. The discharge rate, residual rate and other indicators have all reached and even exceeded standard requirements. The different types of tanks are found in wide use in Transportation, Construction, Power, Electricity, Mining, Molding, Food and other related industries.
ucture of powder tanks.
CIMC 45 CBM Powder Tank Trailer
Main specifications:
Tank Volum: 45 CBM;
Color: blue
Barrel Wall Material: T610L
Axle: FUWA 13T ,3units
Tire: 12R22.5, 13PCS
Landing Gear: 17″ JOST single action
Kingpin: JOST 50# bolted
ABS: Komee 4S/2M
With Air Compressor System
- For chassis, please refer to original truck information.
- For air compressor, please refer to original accessory information.
- Fill grease every month at where there is grease fitting.
- Rated pressure of safety valve is 0.2 Mpa. Any excess is not allowed. During discharge, safety handle could be switched on to blow away dust by high pressure gas.
- Check valve must be checked every two months. The valve core should be replaced and maintenance should be done every half a year.
- No water and other liquids and debris are allowed into the tank. If any of the above mentioned phenomena occur, it is necessary to use the gasification of the tank or the removal of the debris after drying.
- In the first one and two weeks, the tank seat and truck beam connection should be fastened. After that every half a month there should be such a tightening practice to prevent the bolt from loosening and being damaged.
- On the surface of the upper cover of the material, it should be used to eliminate the cement that is combined with the surface, to ensure that the upper cover and the sealing ring of the sealing ring is closed tightly.
- Discharge valve leakage must be replaced in time, otherwise it will lead to damaging discharge valve and pipes.
- In the process, there has to be attention made to whether gross weight of the vehicle is added up. If the empty weight increases, you will need to check the bag and tube side in time to find whether there are cracks and whether there is cement into the gasification chamber. Check whether there is debris in the tube. The above situation can lead to increased empty weight. Therefore, timely check will be necessary.
- Semi – Trailer should be applied once a week to the traction seat on a grease.
